.iSP


Coding Solutions for Form Fill Seal

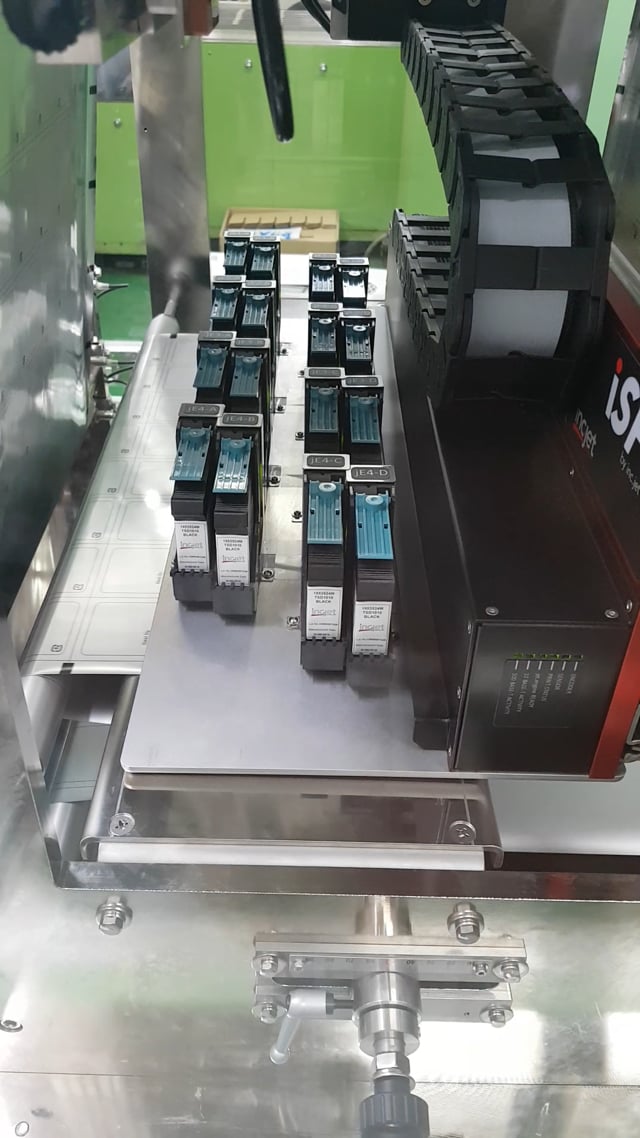

iSP600 8 Lane. Roll width of 600mm with 8 lanes of printing.
600, 800 1000 and 1200mm widths available from 4 to 18 lanes

Designed to be highly configurable allowing for multiple print lanes to be coded without shuttling print heads or expensive laser systems. The unit can be integrated into almost any VFFS machine, regardless of seal type whether pillow, gusseted, block, or doy. Longitudinal and horizontal printing can also be accommodated with ease.

With a small footprint, a modular design and with no moving parts to consider, inc.jet print solutions gives maximum uptime with almost no maintenance and comes with a true Lifetime Warranty on all parts.

MULTI-LANE APPLICATIONS

The high resolution iSP printers provide a versatile, cost-effective and solid solution to meet the need for variable data printing in a range of Vertical Form and Fill Sealers (VFFS).

From 1 lane through to 18 lanes using industry standard roll widths of 600mm, 800mm, 1000mm and 1200mm.

No unreliable and expensive shuttling system, no complex ribbons to change. With a small footprint, a modular design and with no moving parts to consider, this print solution gives maximum uptime with almost no maintenance and comes with a true Lifetime Warranty on all parts.


Specs
Print TechnologyThermal InkJet (TIJ)
Max Print Height 2" (50 mm) maximum,  supports up to 16" (400 mm)
Printable ItemsLot Codes, Datecodes, Alphanumeric, Barcodes, Bitmaps
Barcode PrintingEAN-13/EAN 8, UPC-A, Code128, ITF-14, ITF-2of5, Code39, Crypotcode, GS1 Datamatrix, QR  (114 barcode support included)
Print Speedsup to 152 m/min @300dpi
Print resolution600/600 dpi max
Print Densityuser configurable
Ink TypesAqueous and Solvent
Bulk Ink AvailableYes
ConnectivityEthernet, I/O, Sensor, Encoder, Stack Light Daisy Chain
Voltage115V to 240V
Software IncludedProducer and Director (Enterprise grade)
LanguagesEnglish, Spanish, German, French
WarrantyLifetime Warranty
Benefits

Designed for Form Fill Seal

  • Lower cost than other technologies with FFS
  • Better throughput - change cartridges at 500,000 prints!
  • Cleaner to use. No Ribbons or MEK ink
  • Simple to retrofit - bolt into existing machinery
  • Easy to operate
  • No Maintenance, No mess solution
  • Up to 600 dpi print resolution for stunning barcodes, graphics and alphanumeric

Managed Print

  • Improved ease of use – no need to program ink drive parameters
  • Print drive parameters pre-set to optimize each inks performance and efficiency
  • Ink tracking and cartridge type awareness
  • Enables full functionality of the software
  • Ability to fine tune drive parameters for specialized applications
  • Expanded maintenance and recovery features to keep cartridges working in the most difficult applications

Lifetime Warranty

  • All products from cables to screens to print heads have a Lifetime Warranty
    • No exclusions on labor or hardware
  • A guarantee of reliability for life
  • If there is ever a problem, we will replace it free of charges for the Lifetime of that product whether 1 year or 10 years from now.
Images

Click on any Image to enlarge it

Documents

Print Solutions for Form Fill Seal

iSP Catalog

Lifetime Warranty

Managed Print Solutions

Video

Click on images to view video
